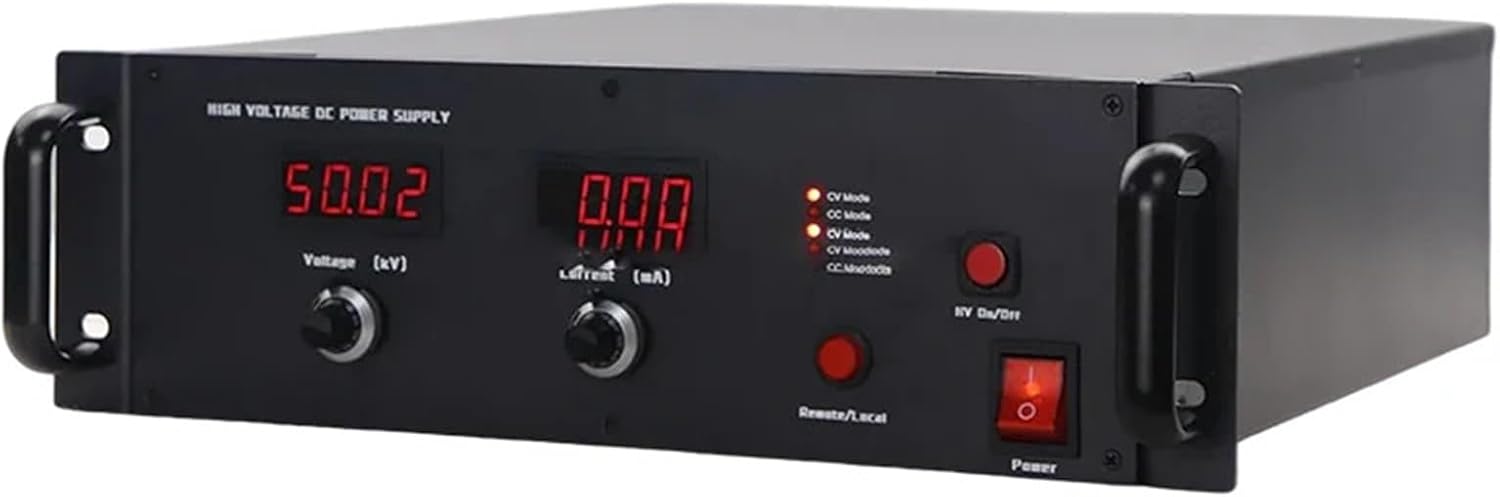

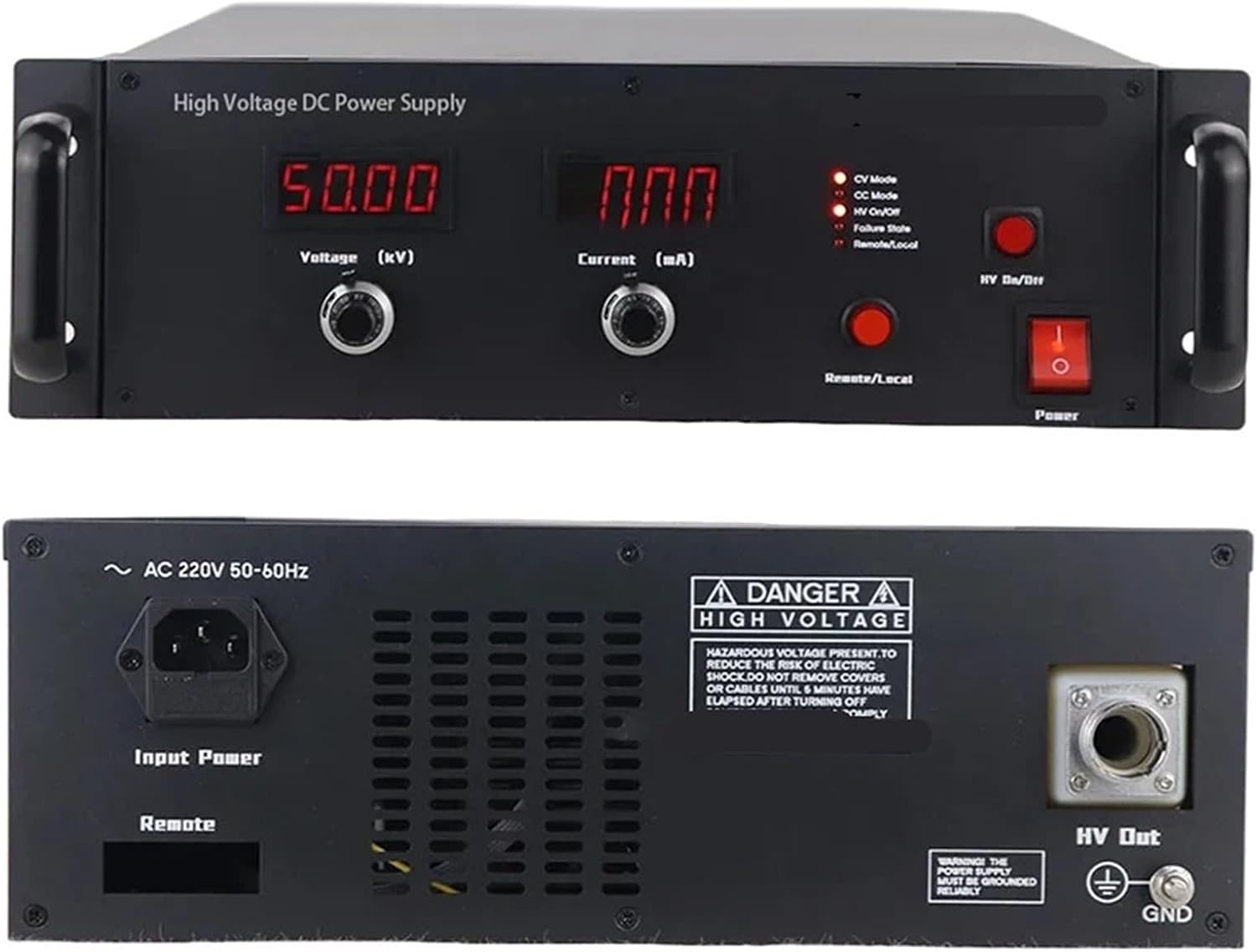

High Voltage Power Supply 50kv 1ma Low Current 50W 220v ac to 50KV dc Power Supply for Super Capacitor Charging(220VAC_50KV_0.6MA 30W)

Industrial Power SupplyHigh voltage power supply 50kv 1ma low current 50W 220v ac to 50KV dc power supply for super capacitor chargingI. INTRODUCTION*APPLICATION1 Self-contained high voltage cable without shielding. Standard high-voltage cable length is 1.5 meters, other lengths are optional.2 High-voltage cable with shielding. Standard high-voltage cable length is 1.5 meters, other lengths are optional.II. HIGH-VOLTAGE OUTPUT CABLE (TWO KINDS ARE OPTIONAL)Dimension of HV power supplyL376*W367*H110(MM)Net Weight/Gross Weight 6.5KG/9.5KG(Carton box/Wooden carton box package)Cooling methodCooling fanOperating environment0°C~40°C, 10%~80%RHStorage environment-20°C~70°C, 10%~90%RHIII. GENERALOver Voltage Protection (O.V.P.)Built-in OVP protection with limit of 105% rated output voltage.The output will be shut down when OVP is activated.Over Current Protection (O.C.P.)Built-in OCP protection with limit of 105% rated output voltage.The output will be shut down when OCP is activated.Over Temperature Protection (O.T.P.)Built-in OTP protection with heat sink temperature limit of 65°C±5°CThe output will be shut down when OTP is activated.Short Circuit ProtectionThe output will be shut down when short circuit protection is activated.IV. PROTECTIONMeter4 digits LED display for voltage and currentDisplay ResolutionVoltage0.01kV / 0.1kVCurrent0.001mA / 0.01mADisplay AccuracyVoltage0.1%FS+2LSBCurrent0.1%FS+2LSBV. DISPLAY IDEALPLUSINGModel IPS-ATDJ60KV-1mARated Voltage50KVDC(Full range adjustable)Rated Current1mA(Full range adjustable) (except 1mA models)Line RegulationCV0.1%FSLoad RegulationCV0.1%FSRipple & Noise05 FSHigh Voltage stability0.1% per hour after warm-up for one hourTemperature co-efficiency100ppm/°CVI. OUTPUTRate Voltage Single phase 220VAC Range voltage 220VAC±10% Frequency 50/60HZ VII. INPUT VOLTAGE 1 Remote ON/OFF control2 0-10V analog control for voltage and current output3 RS485, support Modbus-RTU commands4 RS232, support Modbus-RTU commandsVIII. OPTIONAL INTERFACE1 Output voltage full range adjustable2 High voltage Positive output +10kV to +200kV3 High voltage Negative output -10kV to -200kV4 4 digits LED display for voltage and current5 Low EMI, strong anti-interference ability6 OVP, OCP, ARC, and short circuit protectionsIX. PRODUCT FEATURES1 HV series are high voltage DC power supplies, available from 10kV to 200kV output. 2 Output control can be switched between Remote control and Local control. Output displays and output indicators are direct on the front panels and can lead to the external remote display screen. 3 The high-voltage output terminal has over-current, over-current, short-circuit protection, and arc protection.4 The HV series high voltage power supply is widely used in electrostatic applications, such as Electrostatic dust removal, Electrostatic spinning, Electrostatic electret, Electrostatic separation, Electrostatic spraying, and Electrostatic flocking.5 The HV series high voltage power supply can also be used in High voltage insulation tests, Material sorting, Metal vaporization, High voltage deburring, and Laboratory test.6 Meltblown cloth electrostatic electret equipment7 Electrostatic Spinning8 Electrostatic Dust Removal9 Capacitor Charge10Discharge11Cable Aging Test12Cable Leakage Test13Optical Fiber Withstand Voltage Test14EtcPart 5:Recommend AC DCPart 6:Contact Sales==========High-concerned chemical : NoneOutput Power : 50WOutput Current : 1mAModel Number : /Output Frequency : /Output Type : SINGLEAC Input : 220VACInput Voltage Range : 220VAC ±15% optinalInput frequency : 50Hz/60HzPower Supply Dimension : L376*W367*H110(MM)Packaging Carton Dimension : L560*W480*H270(MM)Net Weight : 6.5KGGross Weight : 9.5KG

• Industrial Power Supply
• High voltage power supply 50kv 1ma low current 50W 220v ac to 50KV dc power supply for super capacitor charging
