Gigabyte NVIDIA GeForce RTX 3050 Graphic Card, 6 GB GDDR6

<strong>CORE CLOCK</strong>1477 MHz (Reference Card: 1470 MHz)<strong>WINDFORCE COOLING SYSTEM</strong>The WINDFORCE cooling system features two unique blade fans, alternate spinning and 3D active fan, which together provide high efficiency heat dissipation.<strong>ALTERNATE SPINNING</strong>Reduce the turbulence of adjacent fans and increase air pressure. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.<strong>UNIQUE BLADE FAN</strong>The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.<strong>3D ACTIVE FAN</strong>The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.<strong>GRAPHENE NANO LUBRICANT</strong>Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.<strong>BUILT STRONG ULTRA DURABLE | ULTRA COOLING</strong>Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.<strong>LOW POWER LOSS</strong>Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.<strong>LONGER LIFE</strong>Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.<strong>FRIENDLY PCB DESIGN</strong>Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.<strong>GIGABYTE CONTROL CENTER</strong>GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

• NVIDIA Ampere Streaming Multiprocessors
• 2nd Generation RT Cores
• 3rd Generation Tensor Cores
• Powered by GeForce RTX 3050
• Integrated with 6GB GDDR6 96-bit memory interface
• WINDFORCE cooling system

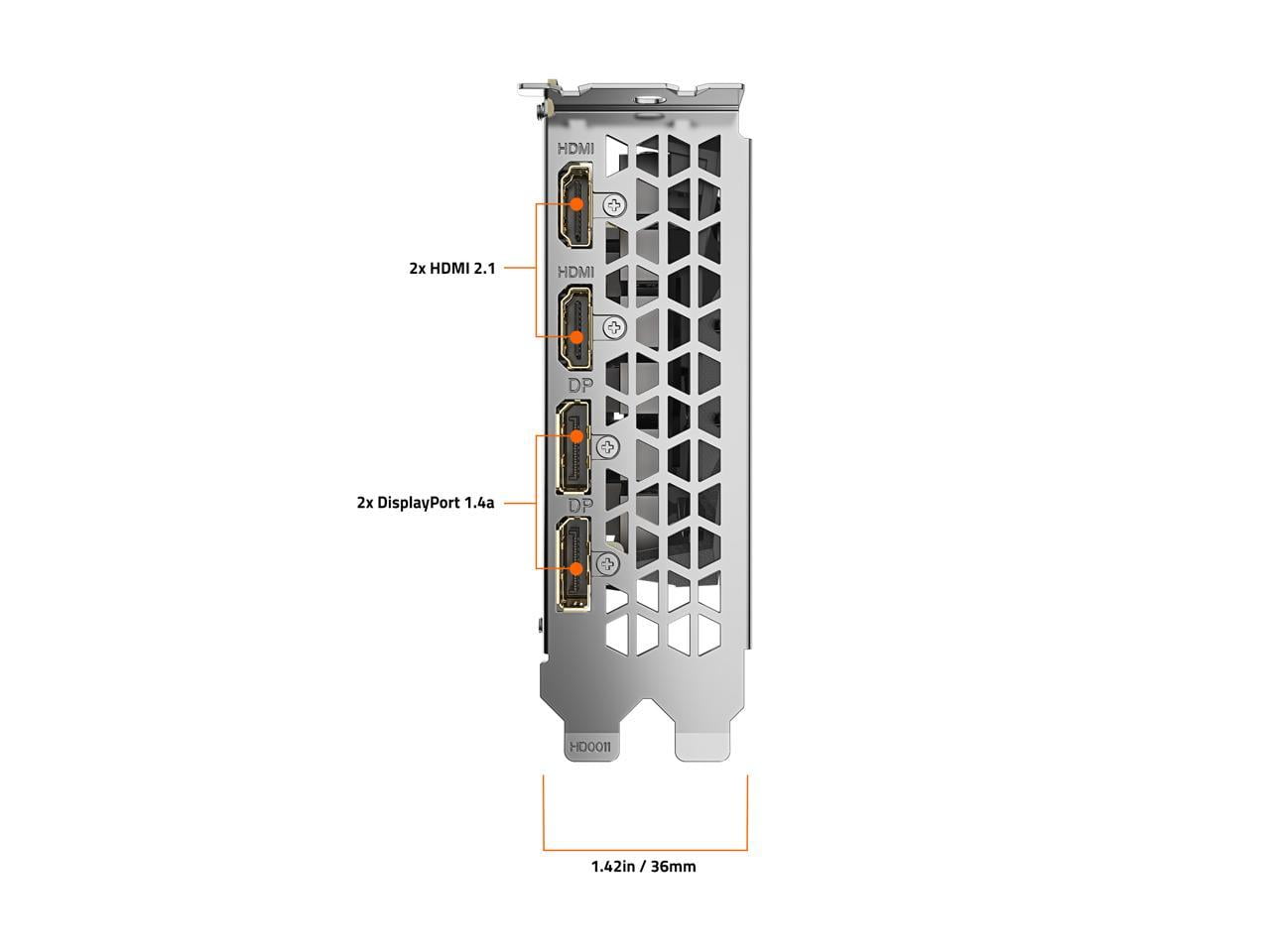

• 2x HDMI 2.1, 2x Display Port 1.4a

Technical Information

• API Supported: DirectX 12 Ultimate, OpenGL 4.6
• Number of Monitors Supported: 4
• Features: Dual-fan Cooler
• Maximum Digital Display Resolution: 7680 x 4320
• CUDA Cores: 2304

  Processor & Chipset

• Chipset Manufacturer: NVIDIA
• Chipset Line: GeForce
• Chipset Series: RTX
• Chipset Model: RTX 3050
• GPU Clock: 1.54 GHz

  Memory

• Standard Memory: 6 GB
• Memory Technology: GDDR6
• Bus Width: 96 bit

  Interfaces/Ports

• Host Interface: PCI Express 4.0
• DisplayPort: Yes
• Number of DisplayPort Outputs: 2
• HDMI: Yes
• Number of HDMI Outputs: 2

  Power Description

• Power Supply Wattage: 300 W

  Physical Characteristics

• Form Factor: Plug-in Card
• Cooler Type: Active Cooler

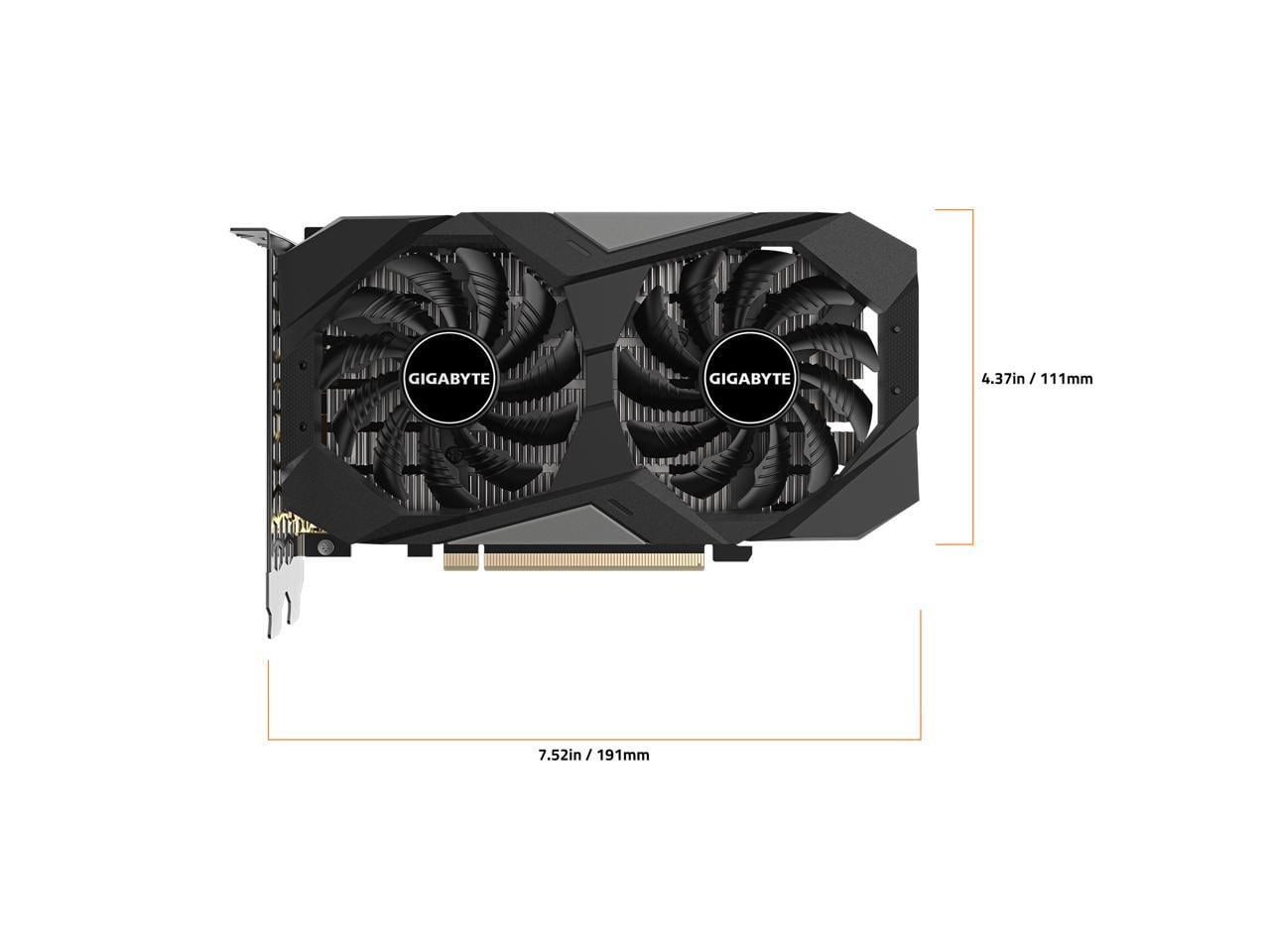

• Height: 1.4"
• Width: 4.4"
• Length: 7.5"

  Miscellaneous

• Platform Supported: PC
